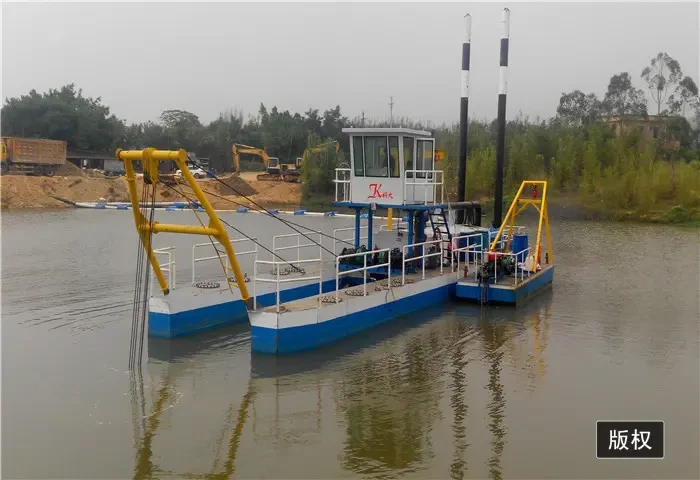

KEDA 10inch Cutter Suction Dredger/Sand Dredger
Model:KDCSD250
Water Flow(m3/h):1200
Standard dredging Depth (m):8
Standard discharge distance:1000
:
I.10inch Cutter suction dredger Description
KEDA 10inch cutter suction dredger/sand dredger/dredger can apply to all kinds of geologic structures and can be widely used in mineral digging, river dredging, lake dredging, port dredging and reclamation works. By absorbing advanced technology of Dutch and American related products, this series of dredgers show their characteristics of rational design, all hydraulic control, simple operation, little maintenance and strong power. dredging depth from 4 m to 25 m and discharge distance from 300 m to 3000 m, which can satisfy different dredger work demands.
II.10inch Cutter suction dredger Feature
1. One-man operation.
2. New highly effective cutter /wheel drive system
3. Reliable hydraulic system.
4. Fresh water cooling system
5. Completely assembled and fully tested before delivery
6. Very simple and fast assembly with experienced engineers.
7. Standard design, allowing short delivery times
8. Standard spare parts available from stock
9. Designed as standard to qualify for Coastal Waters Certificate
10. Customized according to customer's working conditions
III.10inch Cutter suction dredger Specification
| Model | KEDA CSD250 |
| Delivery Time | 20days |
| Dredging Depth (m) | 12 m |
| Water Flow(m3/h) | 1000 m3/h |
| Discharge distance | |
| 1) Standard (m) | 1000 |
| 2) Discharge height(m) | 5 |
| Dredge Pump | |
| 1) Pump model | 500WN |
| 2) Manufacturer | Shijiazhuang, China |
| 3) Water Flow(m3/h) | 1000-1200 m3/h |
| 4) Rotation Speed (r/min) | 650-800 r/min |
| 5) Suction Pipe Diameter (mm) | 350 mm |
| 6) Discharge Pipe Diameter (mm) | 300 mm |
| Dredger Body Dimensions | |
| A.Principal Dimension | |
| 1) Length (with cutter frame in level state) (about) (m) | 28.5 m |
| 2) Breadth ( about) (m) | 5.25 m |
| 3) Depth (about) (m) | 1.5 m |
| 4) Max. Draft (m) | 0.9 m |
| B.Main Pontoon | |
| 1) Length (m) | 11.7 m |
| 2) Breadth (m) | 2.25 m |
| 3) Depth (m) | 1.5 m |
| 4) Quantity | 1 |
| C.Side Pontoons | |
| 1) Length (m) | 20 m |
| 2) Breadth (m) | 1.5 m |
| 3) Depth (m) | 1.5 m |
| 4) Quantity | 2 |
IV.10inch Cutter suction dredger Packing and Delivery
Packaging Details : 40HQ container * 6sets
Port : Qingdao Port
